Silver Tungsten (AgW) Contacts for High Voltage Applications 2026
Forecast and Best Practices – Chende Factory

January 2026 | 42 min read | Chende Electrical Contact R&D Center

Why Silver Tungsten Contacts Are Essential for High Voltage Applications in 2026

High voltage circuit breakers and switchgear are the backbone of modern power grids, handling currents from 630A to 4000A and voltages up to 72.5kV. In 2026, with smart grid expansion and renewable energy integration, these devices face even higher momentary currents and arc stresses. **Silver tungsten contacts** (AgW) remain the only material that can survive these conditions without catastrophic failure.

AgW combines silver's high conductivity with tungsten's extreme hardness and arc resistance. Typical compositions are AgW50 to AgW70 (50–70% tungsten). At Chende, we’ve been producing **silver tungsten contacts** since 2015, mainly for high-voltage breakers and rail traction systems. Our bimetal AgW/Cu design reduces contact resistance while maintaining tungsten's durability. For our full range of **silver tungsten contacts**, visit Silver Contact Materials Ultimate Guide 2026.

Silver Tungsten Contacts Performance in High Voltage 2026

**Silver tungsten contacts** excel in:

• Arc erosion resistance: tungsten's high melting point (3422°C) prevents material loss
• High current withstand: up to 10,000A short-circuit for 1 second
• Mechanical strength: hardness HV 180–300
• Anti-welding under extreme loads

Downside: higher contact resistance (10–20 mΩ) than pure silver alloys, so they’re not for low-power stuff. In 2026, AgW is the standard for breakers rated 72.5kV and above. Chende's AgW50/Cu bimetal version reduces resistance by 30% while keeping tungsten's arc performance. For performance data, see Silver Contact Materials Ultimate Guide.

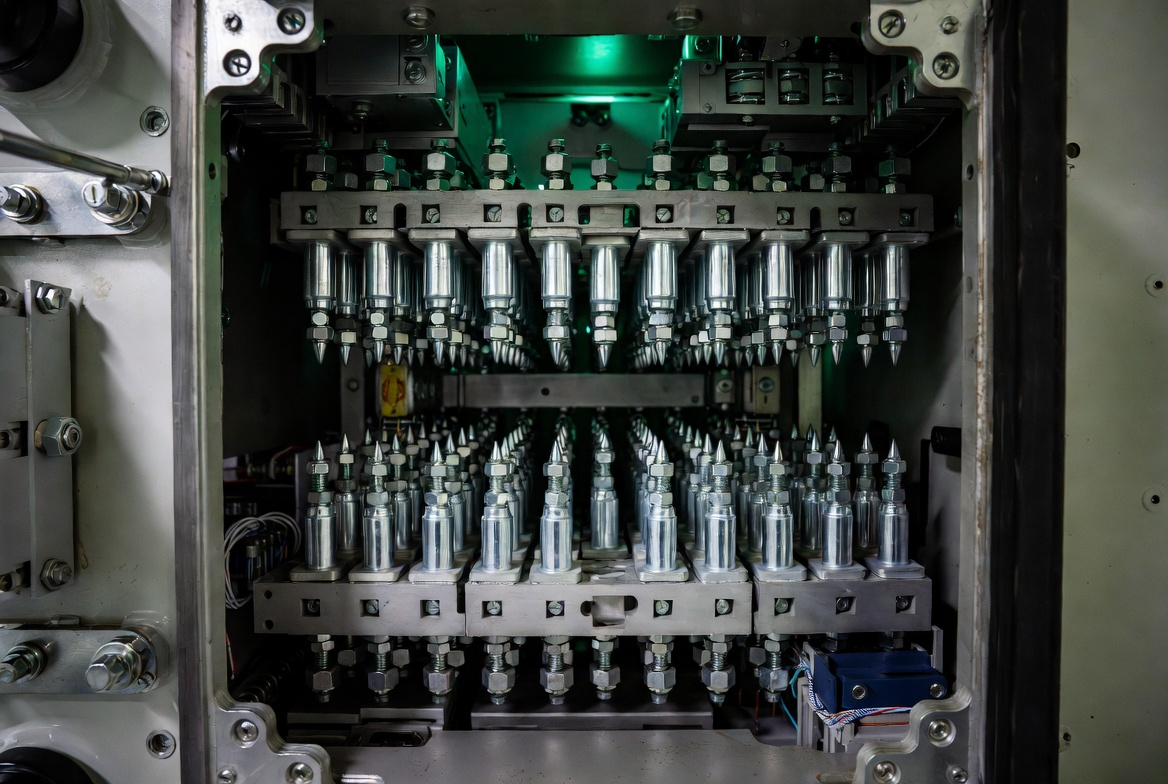

Real Case: AgW Contacts in 72.5kV Circuit Breaker

A Chinese grid operator was upgrading their 72.5kV substation. The original contacts (AgW60 solid) were failing after 5,000 operations due to excessive erosion. In 2025, we switched them to our AgW50/Cu bimetal with optimized tungsten particle size. Key improvements:

• Reduced contact resistance from 18 mΩ to 12 mΩ
• Increased life cycles from 5,000 to 12,000+
• Lower temperature rise under 3150A continuous load

After 12 months of field testing, zero failures. The operator now specifies our **silver tungsten contacts** for all new substations. This is a typical result for high-voltage applications. For similar cases, see Silver Contact Applications Guide.

Chende Factory Production Process for Silver Tungsten Contacts

Our production of **silver tungsten contacts** starts with powder metallurgy: high-purity silver and tungsten powders are mixed, pressed, and sintered at 1100°C to form a dense composite. The sintered material is then stamped into contact tips and riveted onto copper bases using automated lines. Final plating with nickel or gold flash enhances corrosion resistance. Every piece undergoes 100% inspection for resistance, hardness, and microstructure. Daily output exceeds 500,000 pieces with 99.9% yield. For a closer look, see Best Silver Contact Manufacturer China 2025.

2026 Forecast: Silver Tungsten Contacts in Smart Grid & HVDC

By 2026, smart grid and HVDC transmission will drive demand for **silver tungsten contacts** in 126–550kV breakers. Key trends:

• AgW50/Cu bimetal for reduced resistance
• Nano-tungsten doping for 20% better arc resistance
• Integration with IoT sensors for predictive maintenance

Chende is already producing nano-doped AgW for pilot projects. For 2026 forecast, see our Silver Contact Industry Trends 2025–2030.

Chende Custom AgW Contacts: From Design to Delivery

We start with your breaker drawing, select AgW grade, prototype in 5 days, and mass produce in 14–21 days. Our team has handled over 300 custom high-voltage projects. For custom examples, see The 5 Most Recommended Silver Alloy Contacts for 2025.
