Custom Silver Electrical Contacts According to Drawings 2026 – OEM Guide

Custom Silver Electrical Contacts According to Drawings 2026 – OEM Guide
Chende Factory – Low MOQ, Fast Prototype, Free Samples

January 2026 | 45 min read | Chende Electrical Contact R&D Center

Custom silver electrical contacts according to drawings 2026 Chende factory

Why Choose Custom Silver Electrical Contacts According to Your Drawings in 2026

In 2026, most relay, contactor, switch, and circuit breaker manufacturers no longer accept off-the-shelf contacts. They need **custom silver electrical contacts according to drawings** to fit exact dimensions, meet specific performance requirements, and reduce assembly costs. At Chende, 70% of our orders are custom – from CAD drawings, samples, or even hand sketches.

Custom silver contacts allow you to specify alloy (AgNi, AgSnO2, AgW), head shape (flat, round, point), size (1–4 mm diameter), plating (gold/nickel), and base material (copper, copper alloy). This ensures perfect fit, better conductivity, longer life cycles, and RoHS compliance. Our low MOQ (10K pieces) and fast prototype (3–5 days) make custom orders affordable even for small/medium companies. For the full custom process, see our main guide Bimetal Rivets Ultimate Guide 2026.

Custom silver contacts from CAD drawings 2026 Chende factory

Custom Silver Electrical Contacts Materials: What to Specify in Your Drawings

When sending drawings, specify the head material to match your application:

Application	Recommended Head Material	Conductivity (% IACS)	Arc Erosion (mg/10K cycles)	Anti-Welding Force (N)	Why Choose This
Automotive Relays	AgNi20/Cu	75–85	0.6–0.8	50–120	Anti-material transfer in DC
EV Charging Relays	AgSnO2(12) + In₂O₃/Cu	75–80	0.3–0.4	140–200	High inductive load, RoHS
High Voltage Breakers	AgW50/Cu	50–60	0.2–0.3	80–150	Extreme arc resistance
DC Disconnect Switches	AgC5/Cu	70–80	0.4–0.6	200+	Superior anti-welding
Signal Relays	Pure Ag/Cu or Gold-plated	100–105	1.5–2.0	20–40	Low resistance, corrosion resistance

Always specify head thickness (0.3–0.8 mm), shank diameter/length, and plating in drawings. Chende accepts DWG, DXF, STEP, PDF formats. For custom materials, see Bimetal Rivets Materials Comparison 2026.

Custom silver electrical contacts materials from drawings 2026

Step-by-Step: How to Get Custom Silver Contacts from Your Drawings

Our process is simple and fast:

Send Drawings: Email or WhatsApp DWG/DXF/STEP/PDF + requirements (current, voltage, cycles, environment).
Quote in 24 Hours: We analyze drawings, suggest materials/sizes, and quote (MOQ 10K, prototype fee low).
Prototype in 3–5 Days: We make 10–50 samples for testing.
Confirm & Mass Produce: After approval, mass production in 7–14 days (500K+ pieces/month capacity).
Delivery & Support: DHL 3-day shipping + lifetime technical support.

We handle everything from design review to DFM (design for manufacturing) suggestions to reduce costs. For custom process details, see Bimetal Rivets Manufacturing Process 2026.

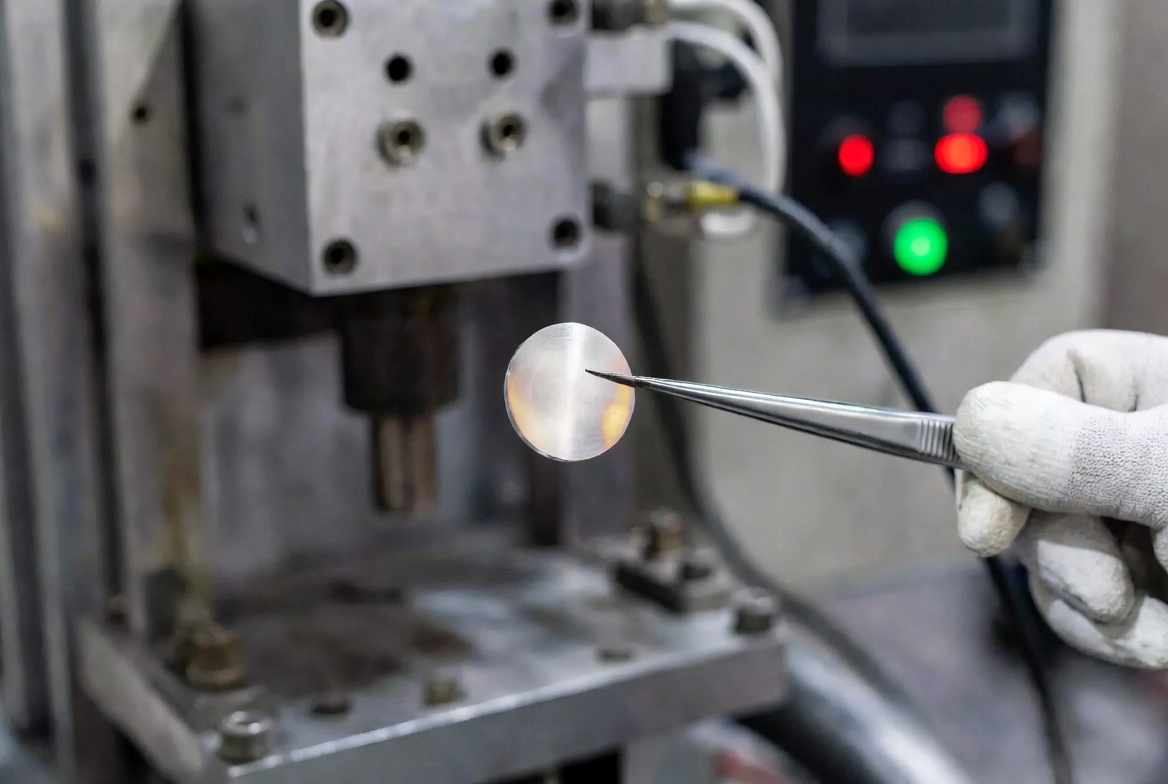

Custom silver contacts from drawings process 2026 Chende factory

Real Case: Custom Silver Contacts from Drawings for EV Charging Relay

A European EV charging manufacturer sent us CAD drawings for a 200A DC relay contact. They needed high anti-welding and RoHS compliance. We recommended AgSnO2(12) + 2% In₂O₃/Cu bimetal rivets with custom head shape. Key results:

Anti-welding force reached 180 N
Life cycles exceeded 300K in 800V DC tests
Temperature rise 18% lower than their previous design
Cost reduced by 35% vs solid silver

They approved the prototype in 4 days and ordered 1.2 million pieces annually. This shows how custom silver electrical contacts from drawings improve performance and reduce cost. For more cases, see Silver Contact Applications Guide.

Custom silver contacts from drawings for EV charging relay case study 2026

2026 Trends: Custom Silver Contacts from Drawings in EV & Smart Grid

By 2026, custom silver contacts from drawings will see:

AI-assisted DFM suggestions for cost reduction
Nano-doping for 20% better performance
Tri-metal designs for corrosion resistance
Low MOQ (5K–10K) for startups

Chende is already offering AI DFM reviews. For trends, see Silver Contact Industry Trends 2025–2030.

Chende Custom Silver Contacts: Low MOQ & Fast Delivery

MOQ 10K, prototype in 3–5 days, mass production in 7–14 days. We accept small orders for testing. For custom silver contacts, see The 5 Most Recommended Silver Alloy Contacts for 2025.

Frequently Asked Questions About Custom Silver Contacts from Drawings

How to send drawings for custom silver contacts?

Send DWG, DXF, STEP, or PDF via email/WhatsApp, along with requirements (current, voltage, cycles, environment). We reply with quote in 24 hours.

What is the minimum order quantity for custom silver contacts?

Our MOQ is 10K pieces for mass production, with low-cost prototypes (10–50 pieces) available for testing.

How long does it take to get custom silver contacts prototype?

Prototype in 3–5 days after drawing confirmation. Mass production in 7–14 days after approval.

Can you customize silver alloy for my drawings?

Yes, we offer AgNi, AgSnO2, AgW, AgC, and doped versions. We suggest the best alloy based on your specs.

Do you offer gold plating on custom silver contacts?

Yes, gold or nickel flash plating is available for corrosion resistance in humid or outdoor applications.
