Bimetal Silver Contact Rivets for Circuit Breakers 2026
Design, Materials, and Installation Tips – Chende Factory

January 2026 | 42 min read | Chende Electrical Contact R&D Center

Why Bimetal Silver Contact Rivets Are the Go-To Choice for Circuit Breakers in 2026

Circuit breakers are the safety backbone of electrical systems, and the contacts inside them have to survive high momentary currents, frequent switching, and intense arc conditions. In 2026, with smart grids and renewable energy pushing breaker ratings higher, **bimetal silver contact rivets** have become the standard for low to medium voltage breakers (up to 630A).

By riveting a silver alloy layer (AgNi or AgSnO2) onto a copper base, **bimetal silver contact rivets** deliver excellent conductivity from the silver side and mechanical strength from the copper side. This design reduces silver usage by 40–60% compared to solid silver contacts, while maintaining reliable performance. Chende has supplied **bimetal silver contact rivets** to major breaker manufacturers for over a decade. For our full range, visit Silver Contact Materials Ultimate Guide 2026.

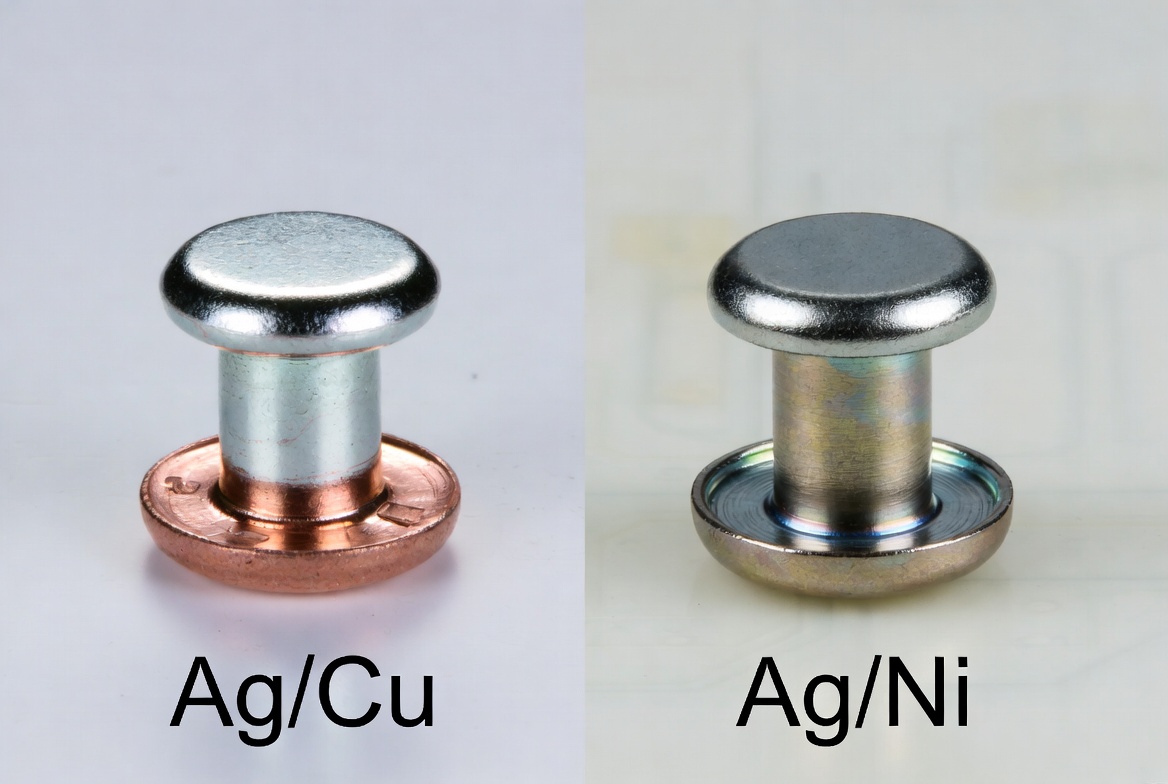

Bimetal Silver Contact Rivets Design: Ag/Cu vs Ag/Ni Comparison

Most **bimetal silver contact rivets** for circuit breakers use either Ag/Cu or Ag/Ni on copper base. Here’s a direct comparison based on our production data and customer feedback.

Chende recommends Ag/Ni **bimetal silver contact rivets** for breakers with frequent operations, and Ag/Cu for high momentary current withstand. For detailed design support, see How to Select the Right Silver Contacts.

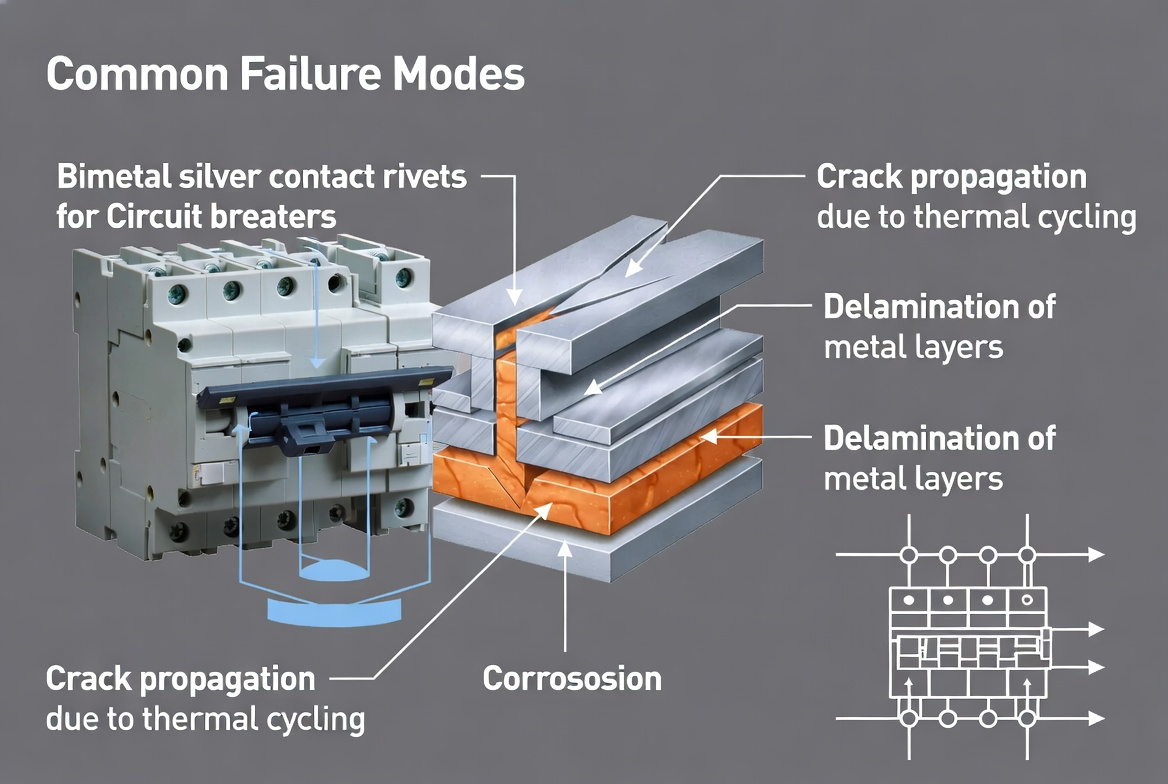

Common Failure Modes in Circuit Breaker Bimetal Silver Contact Rivets

From our experience, the top failures in **bimetal silver contact rivets** for circuit breakers are:

1. Welding under high inrush current
2. Arc erosion leading to increased resistance
3. Material transfer in DC or mixed loads
4. Overheating due to poor contact pressure
5. Corrosion in humid environments

Prevention starts with proper material selection (AgSnO2 for anti-welding, AgNi for low resistance) and precise riveting. Chende’s automated lines ensure consistent head formation and bonding strength. For more on failure prevention, see Top 12 Silver Contact Failure Modes & Prevention.

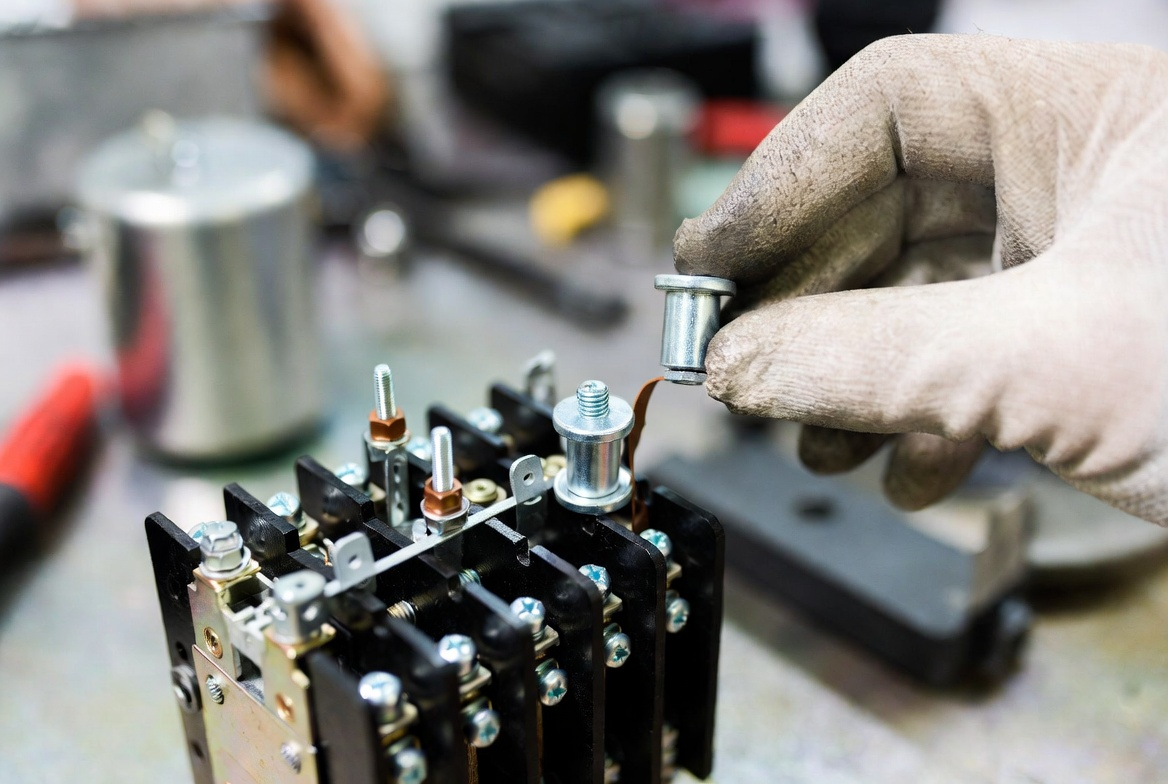

Installation Tips for Bimetal Silver Contact Rivets in Circuit Breakers

Proper installation is critical for long-term performance. Here are tips we share with customers:

• Use precise riveting force (typically 800–1200 N) to avoid deformation
• Ensure copper base is clean and free of oxides before riveting
• Apply contact grease if switching is infrequent
• Check contact pressure after assembly (should be 5–10 N)
• Test resistance (<5 mΩ) and temperature rise after installation

Chende provides installation guides with every custom order. For more tips, see our How to Select the Right Silver Contacts.

Chende Factory: Your Bimetal Silver Contact Rivets Partner

Chende is a professional **bimetal silver contact rivets** manufacturer with:

• IATF16949 certification
• MOQ 10K pieces
• Same-day quotation
• Free samples in 3 days
• Custom design capability

For all **bimetal silver contact rivets**, visit Silver Contact Materials Ultimate Guide 2026.
